Wafer Processing Adhesives and Solutions

Thin semiconductor chips of 180µm thickness and below, even under 100 microns, are now quite common. In the course of this processing, device wafers with finished integrated circuits must go through vigorous wafer backgrinding, polishing and stress relief with chemical and plasma processes.

With the advance of 2.5D and 3D device level packaging, the backside of the wafer must go through wafer processing that includes drilling, vacuum deposition and plating, lithography and various solvent and water cleaning processes. While the backgrinding and thinning process is normally considered separate from wafer processing, the ability to combine wafer backgrinding-thinning and backside active buildup will improve wafer throughput.

Multiplying Wafer Processing Throughput:
Wafer Processing Adhesive on Disposable Carrier

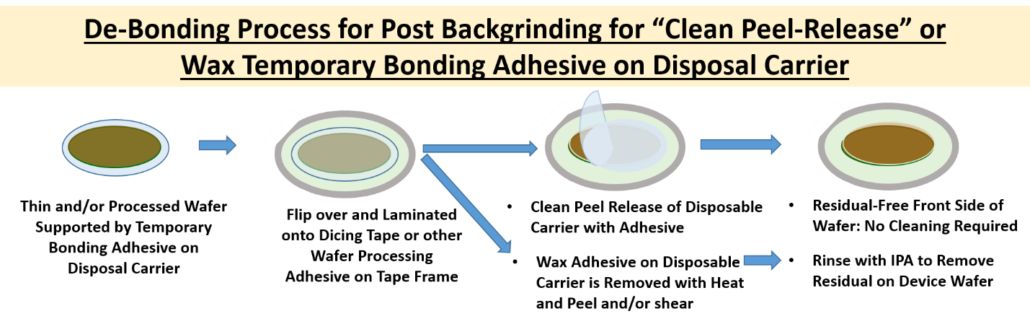

Infographic of the de-bonding process with traditional temporary bonding adhesive and glass carrier vs AIT patent-pending clean peel-release disposable carrier. The GD-PRCL-350 temporary bonding adhesive is engineered to have strong shear bond strength but sill peel cleanly from the device wafer. The adhesive remains attached to the disposable carrier throughout the process. The temporary bonding adhesive is molecularly designed to have the ability to conform and stretch to avoid interfacial stress and prevent finished wafer warpage.

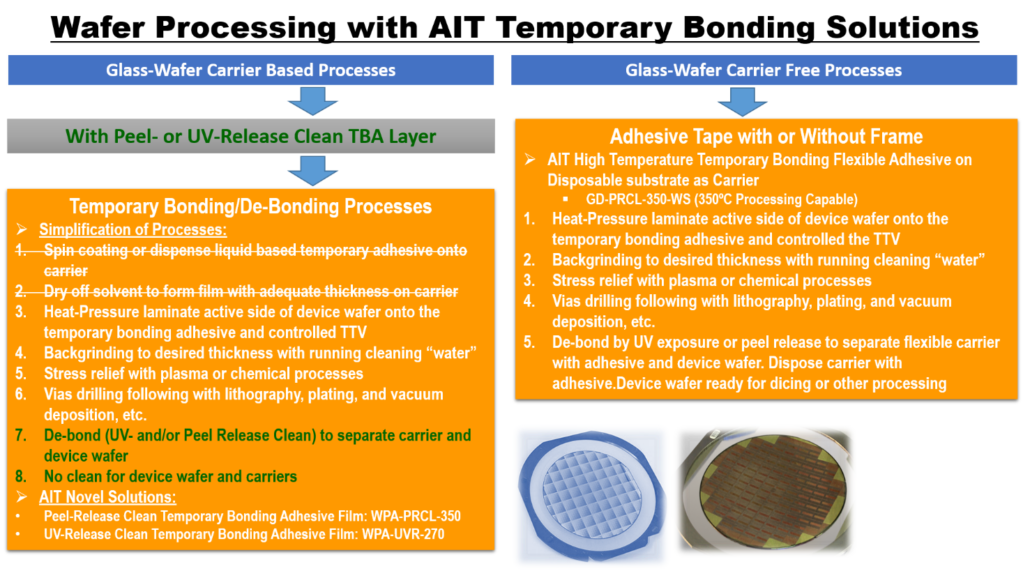

AIT has developed temporary bonding adhesive on disposable carrier. Traditional temporary bonding adhesives for wafer processing have always required a carrier to match carrier-device wafer CTE during the rigors of processing. By eliminating the traditional glass carrier or silicon wafer carrier, wafer per hour throughput is greatly increased.

To successfully enable wafer processing with disposable carrier the key is the innovative, molecularly engineered temporary bonding adhesive: highly conforming, stretchable, and flexible temporary bonding adhesive yet with high shear bonding strength and high temperature stability.

This novel solution cuts down the time, cost, and resources required for wafer processing by removing carrier bonding, carrier debonding, and carrier cleaning steps traditionally required.

These novel temporary bonding adhesives can also be used with traditional wafer processing glass or wafer carrier.

Temporary Bonding Adhesive Solutions with Clean Release De-Bonding:
Backgrinding and 3D Wafer Processing

AI Technology, Inc. created two novel temporary bonding adhesive solutions to simplify processing and increase wafer throughput:

  • Clean Peel-Release Stress-Free Adhesive Film: WPA-PRCL-350
  • UV Clean Release Adhesive Film: WPA-UVR-270

With this clean peel-release adhesive, after finishing backgrinding and wafer processing, the carrier can be mechanically separated from the temporary bonding adhesive. The temporary bonding adhesive can simply be peel-release clean from the device wafer.

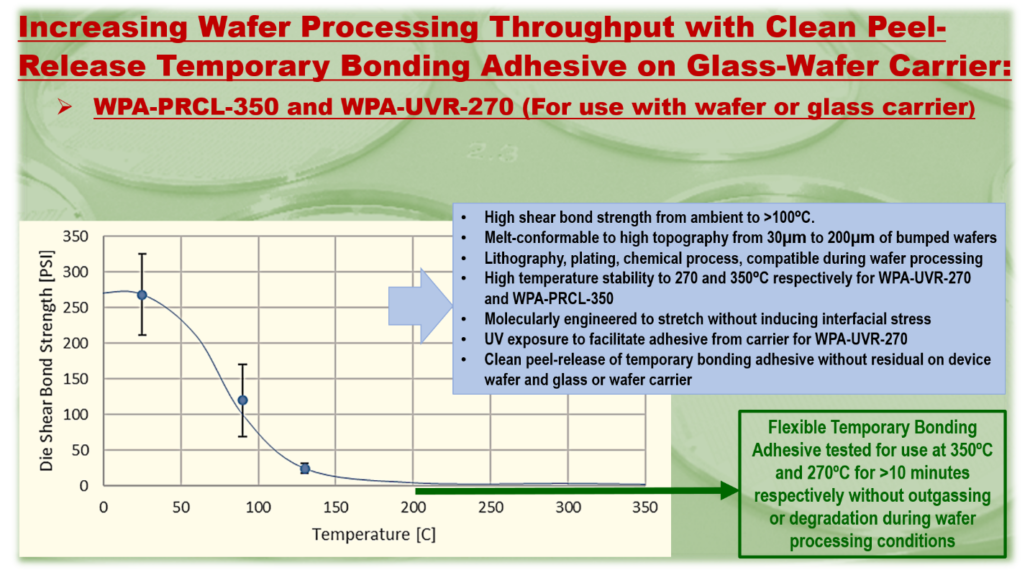

Instead of using more expensive and time consuming focused laser to ablate the temporary bonding adhesive, WPA-UVR-270 enables the glass carrier to be released after UV exposure. The remaining temporary bonding adhesive film can be peeled cleanly from the device. Similar to the WPA-PRCL-350, there is no post separation cleaning required. WPA-UVR-270 can be used for processing up to 270ºC while WPA-PRCL-350 can withstand wafer processing up to 350ºC.

Wafer Processing for High Topography Bumped Wafers:
Conforming, Stress-Free Temporary Bonding Adhesive

AIT melt-conformal clean peel-release temporary bonding adhesive start with the required thickness of 20µm for flat wafers. Temporary bonding adhesive thicknesses of 100µm, 200µm, and 400µm are made for stud bumps wafers and solder bumped wafers with adhesive total thickness variation less than 2µm.

  • Melt-conforming-bonding process:
    • temperature: 140-150ºC
    • pressure: <14 psi or rolling lamination

Temporary bonding adhesive must melt and conform to absorb and encapsulate all of the bumps and features of the device wafer without stress. These criteria are critical for the success of backgrinding; if the adhesive does not meet these requirements the bumps will be reflected on the backside.  AIT temporary bonding adhesive films WPA-PRCL-350 and GD-PRCL-350-WS, pre-deposited onto disposable carrier, have high melt-flow indices at 140-160ºC for ease of conforming to the highest of bumps, up to 200µm.

Film format availability for wafer processing temporary bonding adhesives eliminate dispensing, drying, and post leveling machining processes. Residue-free release from both the device wafer and carrier avoids cleaning processes and saves time, especially compared to focused laser ablation methods. The use of disposable carrier provides even greater efficiency.

Backgrinding Wax Adhesive Solutions for SiC, Sapphire, GaN and GaAs Wafers

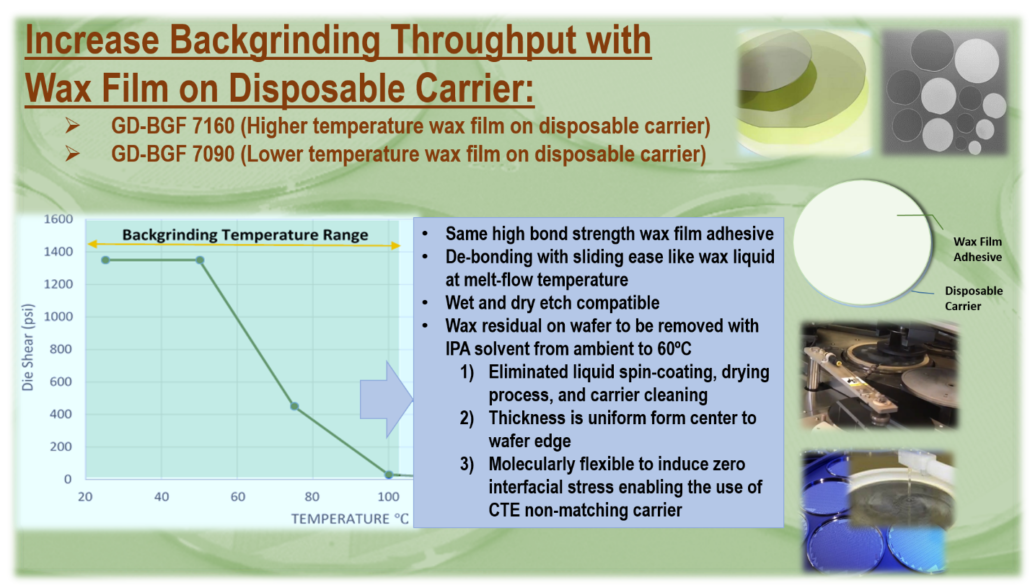

AIT wax film adhesives maintain more than 1000 psi shear bonding strength. The ability to hold the high shear bond strength up to 60ºC is important when backgrinding hard substrate wafers such as SiC (silicon carbide). High shear bond strength protects fragile wafer materials such as GaN and GaAs that can easily fracture with any stress concentration.

The patent-pending solution with AIT melt-conformable temporary bonding adhesive wax on disposable carrier is molecular designed to have flexibility and conform without interfacial stress, including with disposable carriers, whether carrier has 7-9ppm/ºC to match CTE of SiC, Sapphire or GaAs wafer or otherwise.  The wax adhesive film is available from 3µm and up.

These novel wax film temporary bonding adhesives are also available pre-applied onto disposable carrier. The adhesive on disposable carrier is designed to provide the high shear bonding wax adhesive and disposable carrier to enable multiplying of wafer throughput per hour. These proven wax film temporary bonding adhesives are now combined with disposable carrier with finished total thickness variation of less than 2 µm.

Multiplying Wafer Backgrinding Throughput:
Backgrinding Temporary Bonding Adhesive on Disposable Carrier

Traditional film-forming liquid waxes are preferred for their strong bonding to withstand vigorous shear force during backgrinding of hard wafer substrate such as SiC and Sapphire. It is also preferred to protect fragile wafers like GaAs from fracturing.

GD-BGF 7090 is a wax film pre-applied onto flexible disposable carriers (AIT patent-pending) that produces dramatic simplification of processing and thus results in much higher wafer backgrinding throughput.

GD-PRCL-200 is a novel melt-bonding temporary bonding adhesive that has outstanding shear bonding for backgrinding and peel-release-clean with no residuals post backgrinding.

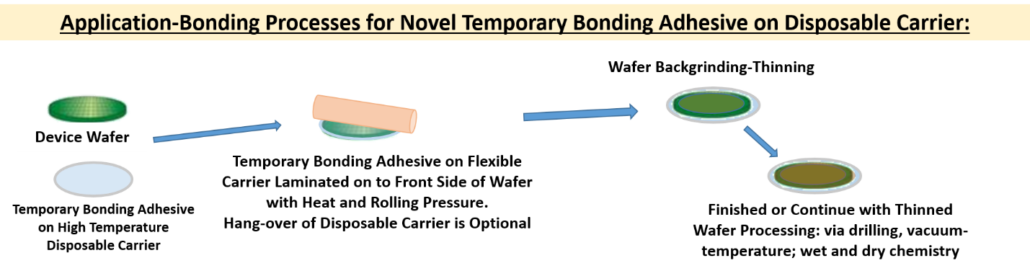

Wax film and melt-bonding flexible adhesive pre-applied onto disposable carrier can be melt-laminated onto the device or substrate wafer to be thinned.

Ease in de-bonding and cleaning are the keys for improving backgrinding throughput. The use of “clean peel-release” can provide multiplying factor to the backgrinding throughput of the difficult wafer such as SiC, Sapphire and GaAs.
